Static Transfer Switch

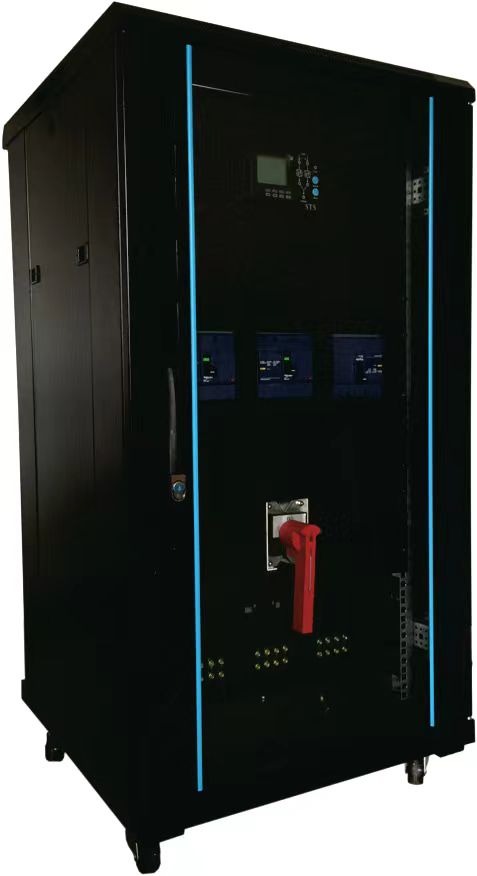

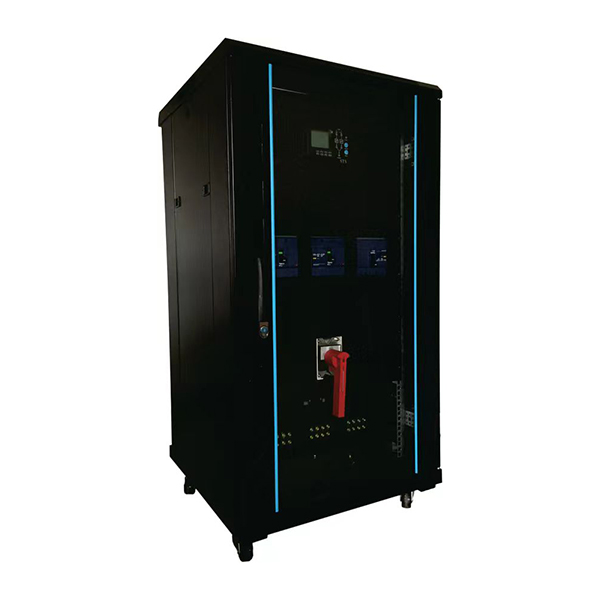

3 Phase Static Transfer Switch

Product description:
INQUIRY

3 Phases 63~400A

The STS product is designed with two independent power inlets to supply power to the load from a primary power source.
Should primary power source fail, the secondary will automatically back up the connected equipment without any interruption.
The transfer time from one line to another is seamless to the connected equipment. After switching to a secondary power source, the STS can also switch power back to the primary input when power to the primary input is restored.
Powered by two separately independent power sources

Dual power supply for redundancy

Provides seamless power switch for IT equipment

Transfer time:≤6 ms

Input Source -A is P riority

MODEL	HPS-3363	HPS-33100	HPS-33160		HPS-33250		HPS-33300		HPS-33400
AC INPUT
Phases	3 Phase
Volatge	AC 380V±15% (Other voltages can be customized)
Frequency	50/60HZ
AC OUTPUT
3 Phase
Volatge	AC 380V±15%
Frequency	50/60HZ
Max Current(/Phase)	63A	100A	160A	250A		300A		400A
Connectors	Terminal block
Breaker	MCB		MCCB(Molded case circuit breaker)
PERFORNMANCE
Tramsfer Time	≤6ms(typical)
Transfer Number	3P (Optional:3P + N)
Priority	Input Source-A is Priority
Transfer Type	SCR / First Disconnect Then Connect
Efficiency	≥98%
DISPLAY
LED	Working Status
LCD	Voltage \ Current\Power
OTHER
Colling	Air cooling; Ac fan start when over temperature
Insulation resistance	DC 500V ≥20MΩ
Insulation withstand voltage	AC1800V 10mA/1 Minute
Operating Temperature	0℃~45℃
Relative humidity	0~99%（Non-condensing）
Operating Altitude	≤1500m
Dimensions(WDH)	6006001000mm				6008001760mm
Net Weight	65kg	70kg	80kg		105kg		155kg		215kg
